Our CNC tooling includes diamond engraving bits, profiling wheels, and drill bits designed for routers and CNC centers. Maximize productivity in countertop cutting, edge detailing, and 3D carving. Durable bonds ensure longevity in granite, quartz, and composite materials.

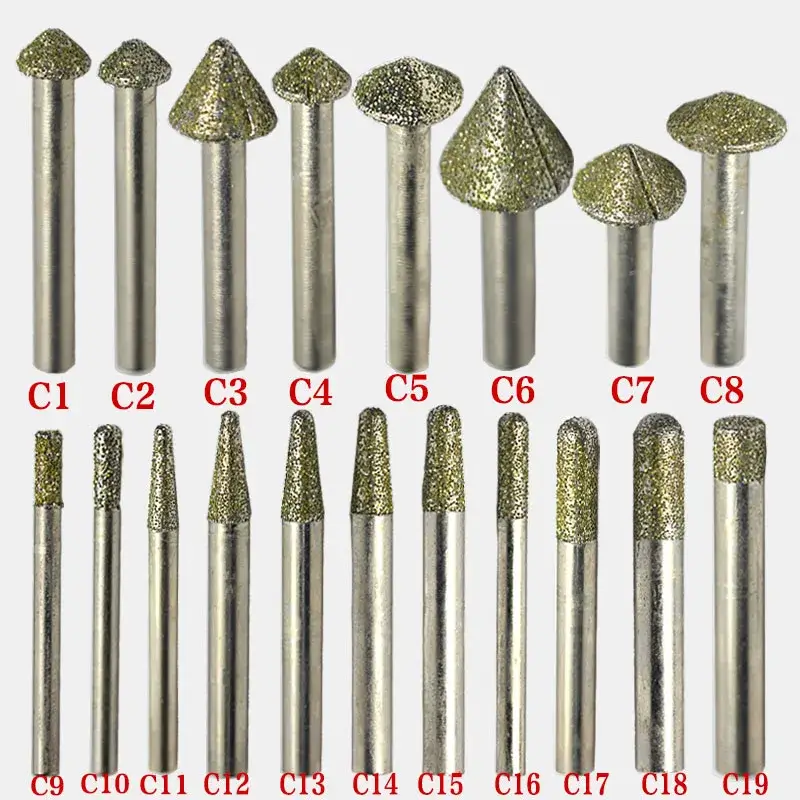

Stone CNC Tools are precision-engineered diamond-embedded cutting instruments designed specifically for computer-controlled stone fabrication machines. Unlike conventional tools, they transform digital designs into intricate stone components through automated material removal processes. These tools interface directly with CNC machining centers, executing complex tasks like contouring, engraving, and 3D sculpting that would be impossible with manual methods.
At Xiamen Sino Poly, our CNC tools feature proprietary diamond matrix technology that maintains cutting integrity during high-speed operations. The diamond grit concentration varies strategically across the tool surface - higher density at edges for aggressive cutting, gradually decreasing toward the center for thermal stability. This prevents common failures like segment warping when processing dense granites or quartzites.
Our tools process diverse materials: from soft marbles (Mohs 3-4) requiring fine-grit diamonds to ultra-hard granites (Mohs 7+). Specialized formulations address unique challenges - porous travertines need resin-filled segments to prevent tearing, while quartz composites require nano-coated diamonds to counter silica abrasiveness. Explore our full range of compatible Stone Cutting Tools for material-specific solutions.
Xiamen Sino Poly tools maintain ±0.01mm dimensional tolerance through ISO 9001-certified manufacturing. Our vacuum brazing process creates metallurgical bonds between diamonds and steel bodies that withstand lateral forces exceeding 300N without deformation. Laser-etched balancing marks enable perfect dynamic alignment, eliminating vibration at spindle speeds up to 12,000 RPM.
Our proprietary CoolCore™ technology incorporates micro-channel coolant pathways within tool bodies. These channels direct cutting fluids precisely to the diamond-work interface, reducing operating temperatures by 40% compared to standard tools. This prevents diamond graphitization - the primary cause of premature wear in continuous processing.
We engineer diamond segments with self-sharpening properties. The metal bond gradually erodes to expose fresh diamond crystals precisely when needed. This maintains consistent cutting speed throughout the tool's lifespan, unlike competitors' tools that degrade exponentially. The matrix hardness is calibrated to stone abrasiveness - softer bonds for hard stones to expose diamonds faster, harder bonds for soft stones to prolong segment life.
In high-rise construction, our CNC tools create precision curtain wall components with tolerances of ±0.3mm. Specialized edge profilers produce perfect tongue-and-groove joints that withstand seismic forces up to 7.5 magnitude. For large-scale projects, our diamond wire rope systems enable efficient cutting of massive stone slabs with minimal kerf loss. Discover our Stone Diamond Wire Rope solutions for architectural applications.
Our 3D engraving bits feature 0.5mm diamond tips that render photographic details at 600dpi resolution. Variable helix angles prevent chip-clogging during deep relief carving of military memorials. For lettering applications, V-point tools maintain consistent depth across varying grain structures, ensuring uniform appearance across memorial complexes.

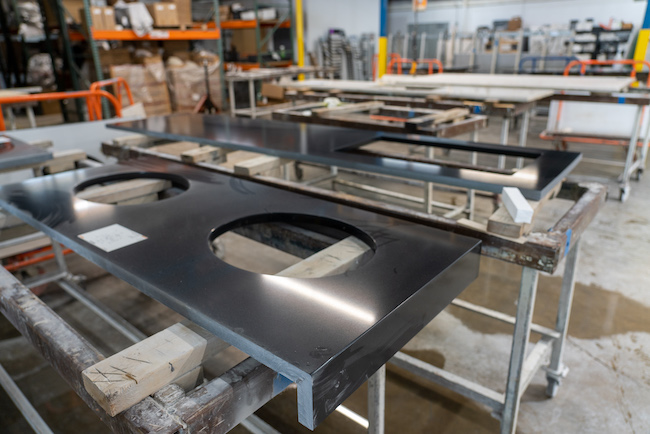

Our CNC sink cutout tools feature internal coolant ports that reduce cutting temperatures by 35% in quartz composites. Specialized bullnose wheels create perfect radius edges from 3mm to 50mm with surface finishes down to 0.2μm Ra. For complex edge profiles, our multi-axis tools reduce setup time by 60% compared to conventional methods.
Ball-nose end mills with 0.5-3mm tip radii enable intricate 3D sculpting in marble and limestone. For detailed relief work, tapered engraving bits maintain consistent depth across curved surfaces. Our specialized tools have been used to create museum-quality reproductions of classical sculptures with dimensional accuracy of 0.1mm.
• CNC Diamond Saws: Electroplated blades for marble (450-800mm diameter), sintered segments for granite (600-1200mm) with kerf widths from 8-15mm

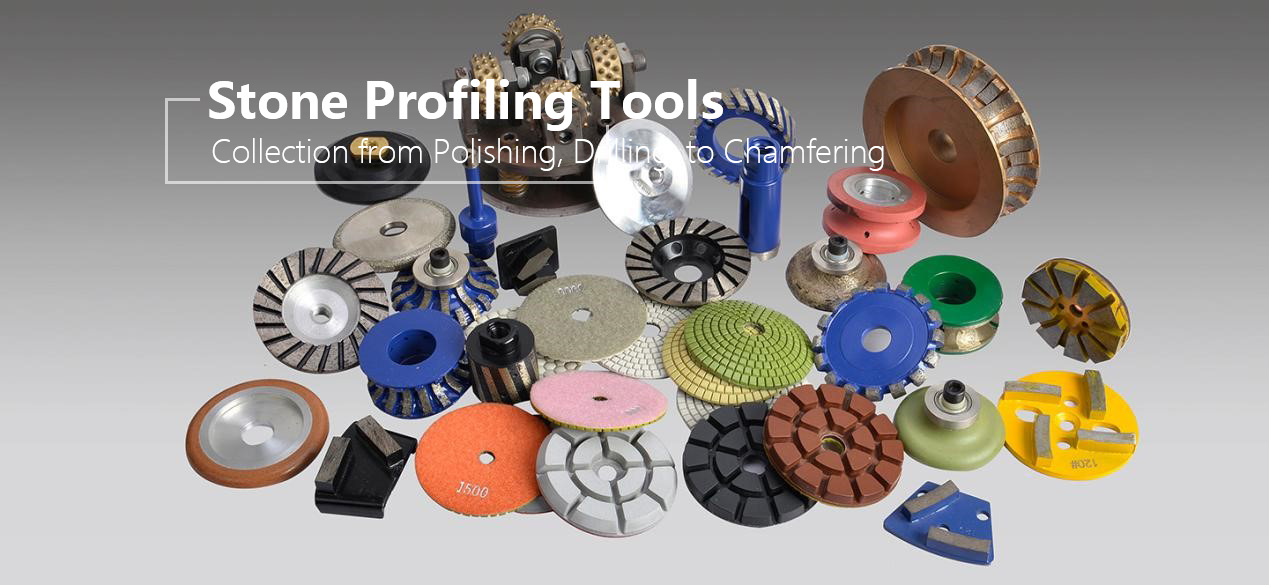

• Edge Profilers: 45°-135° beveling wheels with replaceable diamond cartridges and automatic wear compensation
• Bullnose Wheels: Multi-axis compatible tools creating perfect radius edges from 3mm to 50mm with integrated polishing stages
• Contouring Tools: Variable-radius cutters for complex 3D shapes with adaptive depth control
• CNC Drill Bits: 4-100mm diameter with internal coolant ports and diamond-enhanced flutes
• Engraving Burrs: 30°-120° included angles with diamond coating up to 1200 grit for fine detail work
• Milling Tools: For 3D surfacing and texture creation. Explore our premium Stone Milling Tools for complex geometries
• Dressing Tools: Precision truing devices that maintain tool geometry within 0.01mm tolerance
• Polishing Wheels: Multi-step systems progressing from 50-grit to 3000-grit for mirror finishes
• Calibrating Tools: Diamond planers that achieve thickness tolerances of ±0.1mm across slabs

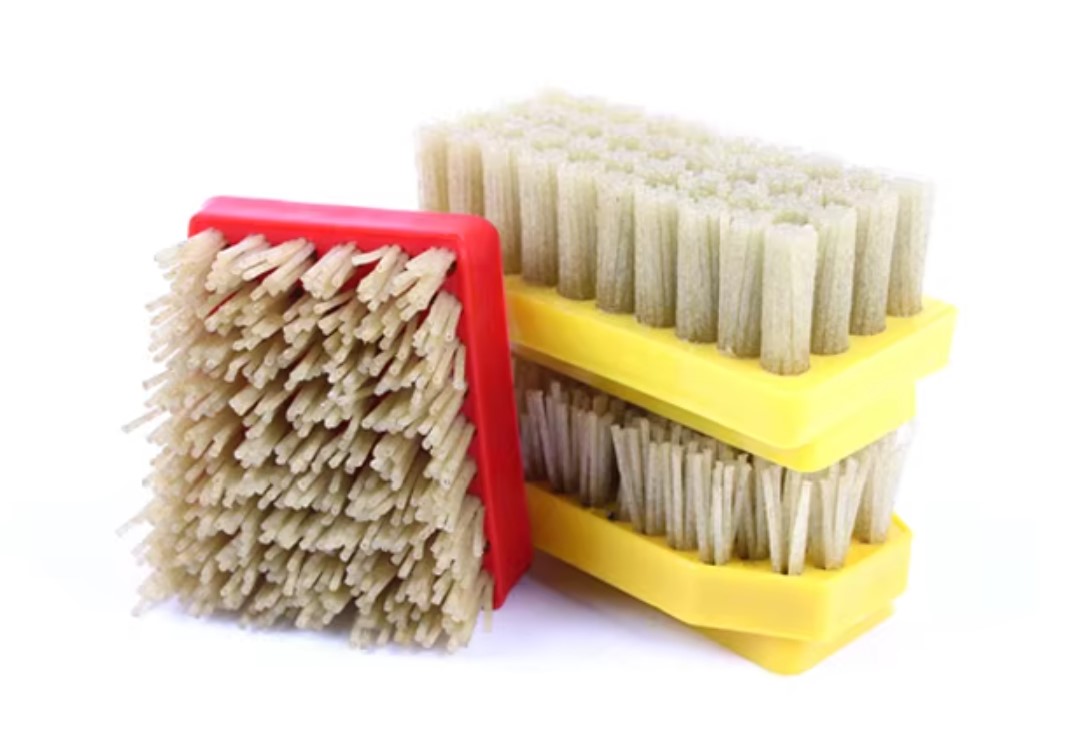

• Brushing Heads: Create antique finishes with controlled surface texture depth
• Honing Tools: Produce consistent matte finishes with 5-10μm surface roughness
• Feed Rate Optimization: Optimal rate = (Spindle RPM × No. of Teeth × Chip Load)/1000
• Chip Load Management: 0.08-0.12mm/tooth for granite; 0.15-0.20mm/tooth for marble
• Coolant Specifications: Maintain pH 8.5-9.2 with concentration of 5-7%
• Spindle Runout: Must be below 0.01mm to prevent uneven wear
• Depth of Cut: Should not exceed 1.5× tool diameter for profile tools
• Silica Content: Tools for high-silica stones (>60% SiO2) require tungsten-reinforced bonds
• Abrasive Index: Our tools are rated from AI-1 (soft limestone) to AI-10 (quartzite)
• Porosity Management: For travertine, use tools with segmented cutting edges
• Thermal Conductivity: Low-conductivity stones require tools with enhanced cooling features
• Quartz Content: Engineered stone requires nano-coated diamonds to counter abrasiveness
• Temperature Control: Maintain workshop temperature at 18-25°C for dimensional stability
• Humidity Management: Relative humidity should be 40-60% to prevent condensation
• Dust Extraction: Install systems with 99.97% efficiency at 0.3μm particle size
• Vibration Isolation: Use pneumatic mounts to reduce harmonic vibrations by 85%
• Advanced R&D Center: Features 3D finite element analysis and diamond grit distribution analyzers
• Material Science: Proprietary diamond bonding technology extends tool life by 40%
• Precision Manufacturing: Swiss CNC lathes maintain tolerances of ±0.005mm
• Quality Assurance: Each tool undergoes 72-hour endurance testing before approval
• Strategic Warehousing: Consignment inventories in Houston, Rotterdam, and Dubai
• Technical Support: Multilingual engineers available 24/5 for troubleshooting
• Custom Tool Development: Bespoke solutions designed in 10-14 working days
• Onsite Training: Global team of application specialists for machine optimization
• Cost Efficiency: Our diamond segments deliver 30% more linear meters per dollar
• Lead Time Reduction: 98% of orders shipped within 48 hours
• Sustainability: Tools feature 30% recycled materials and energy-efficient production
• Performance Guarantee: 100% satisfaction or free replacement policy
Challenge: 40% rejection rate on intricate Carrara marble mosaics
Solution: 2mm diamond engraving bits with 0.2mm radius
Result: 99.2% yield, €78,000 annual savings, 35% faster production
Challenge: 3-hour sink cutout time in Absolute Black granite
Solution: Turbo-vented core drills with diamond-enhanced flutes
Result: 22-minute operations, 300% productivity increase, $142,000/year savings
Challenge: Excessive tool wear on sandstone memorials
Solution: Resin-bonded tools with 60/80 mesh diamonds
Result: Tool life extended from 15 to 82 hours, 68% cost reduction
Challenge: Thermal expansion cracks in desert climate installation
Solution: Low-kerf diamond wire saws with precision tensioning
Result: Zero material waste in 18,000m² facade production, project completed 3 weeks ahead of schedule
• Pre-shift Inspection: Check for chipped diamonds and segment integrity
• Ultrasonic Cleaning: 15-minute cycle after each shift removes impacted particles
• Coolant Management: Maintain concentration between 5-7% with pH 8.5-9.2
• Runout Verification: Laser alignment checks before critical jobs
• Usage Documentation: Digital logbooks track tool life for predictive replacement
• Dressing Schedule: True tools after every 15 operating hours
• Bearing Replacement: Change spindle bearings every 800 operating hours
• Coolant System: Full flush and replacement every 200 hours
• Thermal Imaging: Monthly scans to detect abnormal heat patterns
• Vibration Analysis: Quarterly checks to identify harmonic imbalances
For Granite (Mohs 6-7): • Core drilling: Electroplated diamond drills with cross-holes (Grade G7)
• Edge profiling: 30mm radius wheels with replaceable segments (Bond Hardness 35-40)
• Surface milling: 12mm ballnose tools with coarse grit diamonds (40/50 mesh)
For Marble (Mohs 3-5): • 3D carving: Ball-nose end mills with 0.5-3mm tip radii (Bond Softness 20-25) • Detailing: 90° V-bits with 0.2mm cutting edge (Fine grit 200/230) • Polishing: Multi-step resin-bonded wheels with diamond grits 50-3000High-Precision Cutting:
• Kerf width: 8-10mm sintered blades for minimal material waste
• Straightness tolerance: ±0.15mm/m for structural components
Mass Production: • High-feed tools with chipbreaker geometry • Automated tool changers compatible systems • For quarry operations, consider our heavy-duty Stone Quarrying Tools Artistic Applications: • Micro-diameter tools (0.3-2mm) for fine details • Variable geometry tools for organic shapes • Low-vibration tool holders for precision work
