Versatile cutting for quarries and complex shapes. Our diamond wire saws enable flexible, curved, and large-scale stone cutting. Ideal for squaring blocks, monumental work, and intricate sculptures. High-tensile cables with sintered diamond beads ensure smooth, vibration-free operation in marble, limestone, and hard granite. Wet/dry cutting options available.

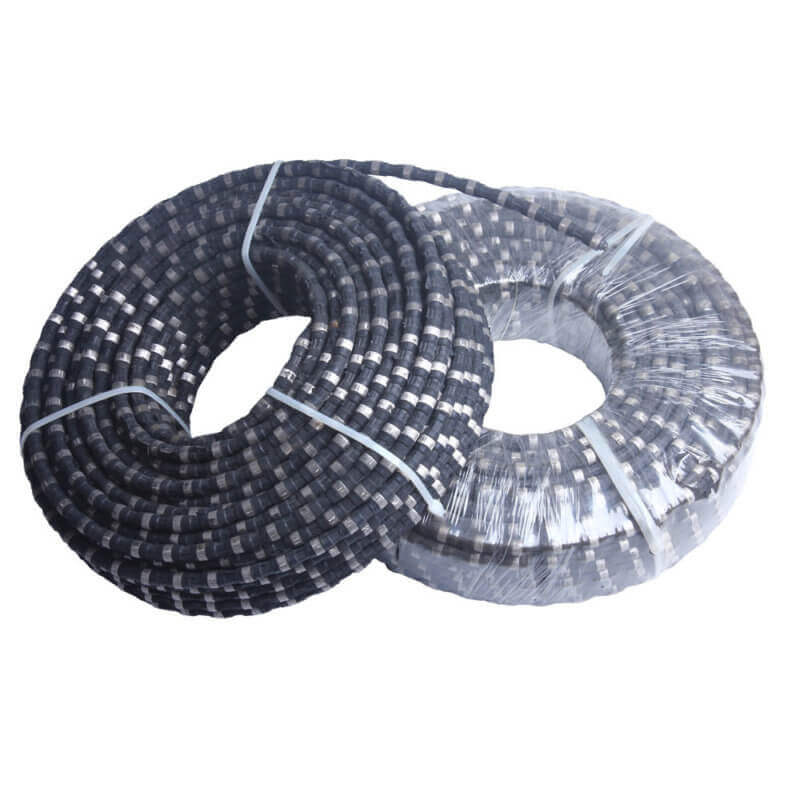

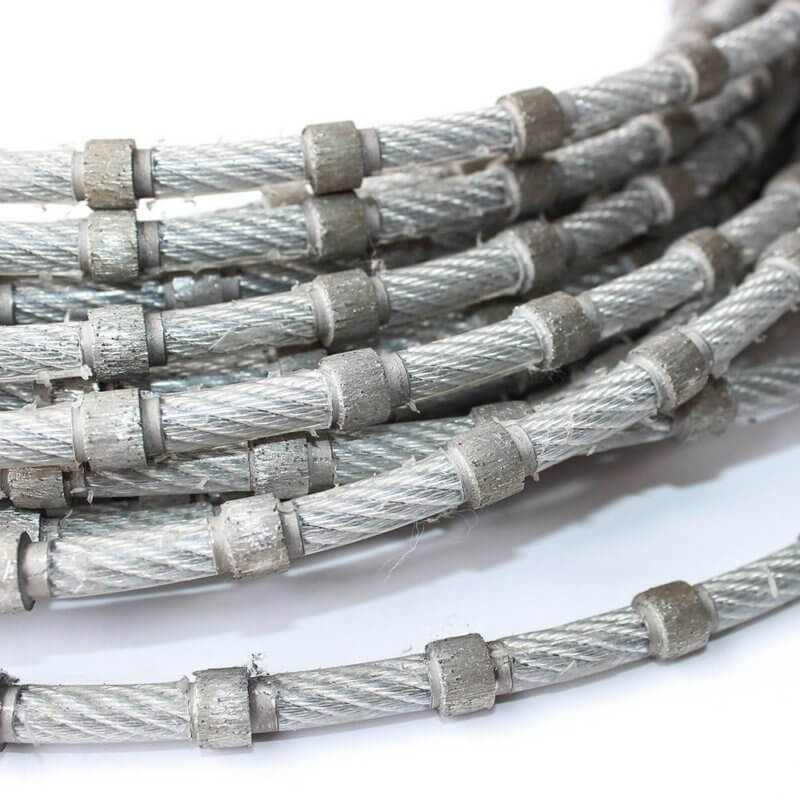

Stone Diamond Wire Rope represents a revolutionary advancement in stone cutting technology. This sophisticated tool consists of a high-strength steel cable embedded with diamond-impregnated beads at regular intervals. Designed specifically for the demanding stone industry, diamond wire ropes offer unparalleled precision and efficiency in cutting hard materials like granite, marble, limestone, and other natural stones.
Unlike traditional cutting methods, diamond wire technology enables complex cuts with minimal material waste. The diamond wire rope operates on a continuous loop system, providing consistent cutting action that reduces vibration and improves cut quality. This technology has transformed quarrying and stone processing operations worldwide, making previously challenging projects feasible and cost-effective.

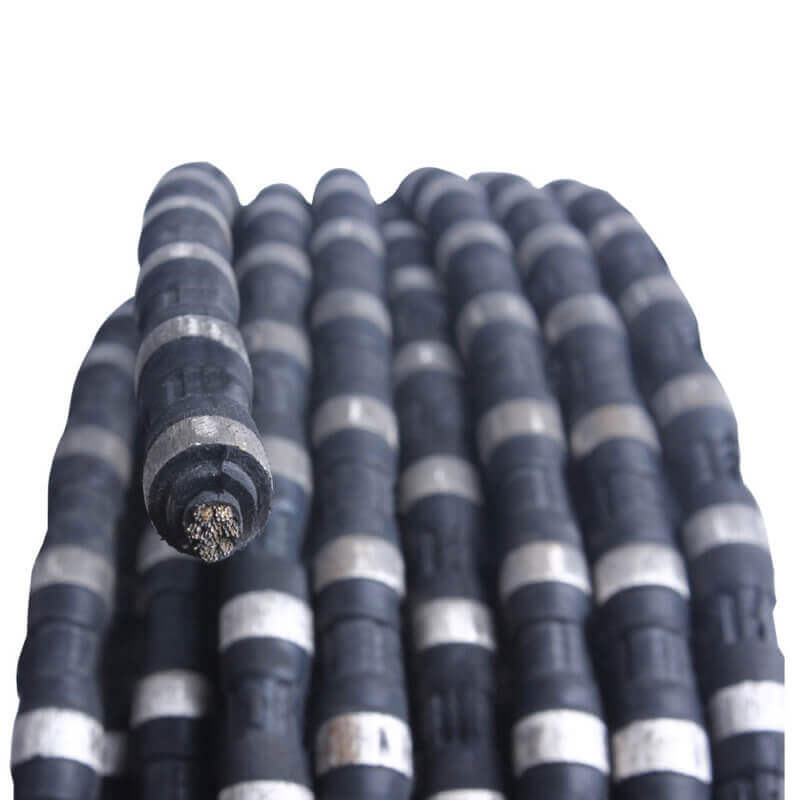

High-carbon steel core wire provides exceptional tensile strength, while diamond-impregnated segments deliver cutting power. The polymer coating protects the cable and provides flexibility.
Standard diameters range from 5.4mm to 11.5mm, with bead spacing optimized for different stone types. Operating speeds typically range between 30-40 m/s for optimal performance.
Xiamen Sino Poly’s diamond wire ropes incorporate cutting-edge technology and premium materials to deliver exceptional performance in the most demanding stone processing applications. Our products are engineered to maximize efficiency while reducing operational costs.
Diamond beads maintain consistent size and cutting ability throughout the wire’s lifespan, enabling precise cuts with minimal deviation.
High-quality diamond grit and specialized bonding materials extend operational life, reducing replacement frequency.
Thin kerf design minimizes stone loss, increasing yield from valuable stone blocks by up to 15% compared to traditional methods.
Can navigate curves and complex cuts impossible with rigid cutting tools, enabling intricate architectural elements.
Continuous cutting action minimizes vibration, reducing structural stress on equipment and improving operator comfort.
Specialized bead design enhances coolant penetration, reducing friction and preventing overheating during operation.
The operation of diamond wire rope involves a sophisticated interplay of mechanical action and material science. The wire rope is threaded through pre-drilled holes in the stone or around the material to be cut, then connected to form a continuous loop. This loop is driven by a powerful motorized pulley system that maintains high tension and precise speed control.
As the diamond beads contact the stone surface, the diamond particles abrade the stone material. The continuous movement ensures even wear distribution across all beads.
Water or specialized coolant is continuously applied to the cutting area to reduce friction, remove stone particles, and prevent overheating of both the wire and the stone.
Optimal tension (typically 25-35 kN) is maintained throughout the cutting process to ensure straight cuts and prevent wire deflection or breakage.
Diamond wire ropes have revolutionized stone processing across multiple industries. Their versatility and precision make them indispensable tools for modern stone operations:

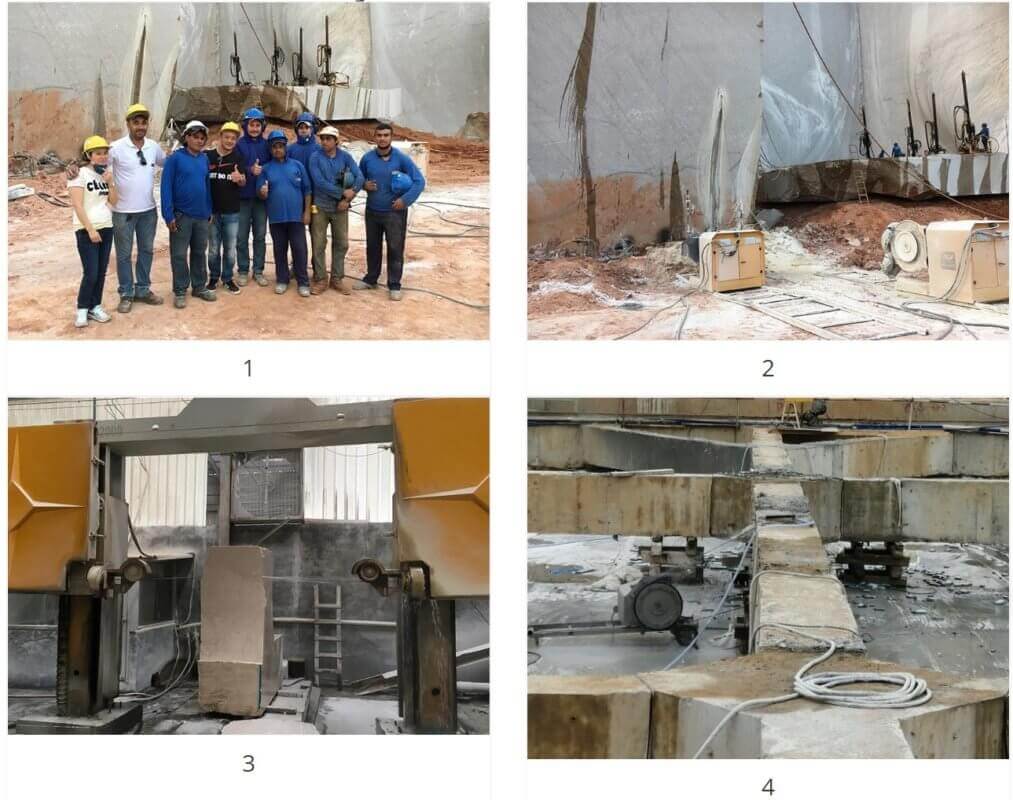

Vertical and horizontal cutting of large stone blocks directly from the quarry face with minimal waste.
Squaring blocks and cutting them into uniform slabs of precise thickness for countertops and cladding.
Creating large-scale sculptures, memorials, and architectural elements with intricate designs.
Demolition and recycling of stone structures where precision cutting is required in confined spaces.
Beyond traditional applications, diamond wire technology enables specialized stone processing techniques. Our diamond wire ropes are ideal for underwater cutting operations where conventional tools fail. They’re also essential for creating curved architectural elements and complex shapes in luxury stone projects. For complementary stone processing tools, explore our Stone Cutting Tools collection.
Xiamen Sino Poly offers a comprehensive range of diamond wire ropes engineered for specific stone types and cutting applications. Selecting the appropriate wire type is crucial for optimizing performance and cost-efficiency:
| Wire Type | Best For | Bead Composition | Speed (m/s) | Life Expectancy |
|---|---|---|---|---|
| Granite Series | Hard stones (Granite, Basalt) | Premium diamonds with tungsten matrix | 32-36 | 25-40 m² |
| Marble Series | Soft stones (Marble, Limestone) | Medium-grade diamonds with cobalt matrix | 35-40 | 40-60 m² |
| Quarry Series | Primary block extraction | Industrial diamonds with iron matrix | 28-32 | 15-25 m² |
| Precision Series | Complex shapes & sculptures | High-grade diamonds with special alloy | 25-30 | 10-20 m² |
| Economy Series | General purpose cutting | Standard diamonds with bronze matrix | 30-35 | 15-25 m² |
For specialized stone processing operations, consider complementing your diamond wire with our Stone Quarrying Tools for a complete solution.
Maximizing the operational life of diamond wire ropes requires understanding the key factors that influence their durability. Proper maintenance and operation can extend wire life by up to 40%, significantly reducing operational costs:
Harder stones like granite wear beads faster than softer materials like marble. Abrasive content in stone accelerates wear.
Inadequate coolant leads to overheating, while poor water quality causes bead glazing and reduced cutting efficiency.
Excessive tension causes premature fatigue, while insufficient tension leads to wandering cuts and uneven wear.
Operating outside recommended speeds accelerates wear or reduces cutting efficiency.
Proper threading, tensioning, and monitoring significantly impact wire longevity.
Worn pulleys or misaligned guides cause uneven stress and premature wire failure.
Diamond wire rope pricing varies significantly based on several technical and material factors. Understanding these elements helps customers make informed purchasing decisions:
Premium synthetic diamonds (30-40% concentration) substantially increase cost but offer superior cutting speed and longevity.
Specialized metal alloys (cobalt, tungsten) enhance performance in specific stone types but increase material costs by 20-35%.
Closer bead spacing (35-40mm) improves cutting precision but requires more diamonds, increasing production costs.
Other significant factors include the tensile strength of the steel core (high-carbon vs. spring steel), specialized polymer coatings for corrosion resistance, and manufacturing tolerances. Custom configurations for unique applications also affect pricing. For precision cutting applications, consider our Stone CNC Tools as complementary equipment.
With over 15 years of specialization in stone processing tools, Xiamen Sino Poly has established itself as a global leader in diamond wire technology. Our commitment to innovation and quality ensures our customers receive the most advanced and reliable cutting solutions:
State-of-the-art production facilities with ISO 9001 certification ensure consistent quality and performance.
Proprietary diamond bonding technology developed through extensive R&D investment.
Technical assistance and spare parts available through our worldwide distribution partners.
Engineering team develops application-specific wires for unique customer requirements.
All our diamond wires come with a performance warranty and technical support commitment.
Our optimized designs deliver up to 30% more cutting area per dollar compared to industry averages.
Our diamond wire ropes have transformed operations for stone processors worldwide. Here are recent success stories from satisfied customers:
Challenge: Reducing waste in Carrara marble extraction
Solution: Precision Series Diamond Wire
Results: 22% material savings, 15% increase in productivity
Challenge: Cutting thick granite slabs efficiently
Solution: Granite Series HD Wire Rope
Results: 30% faster cutting, 40% longer wire life
Challenge: Cutting fragile travertine with minimal breakage
Solution: Custom Low-Vibration Wire
Results: Breakage reduced by 85%, yield increased by 18%
Challenge: Creating complex sculptural elements in granite
Solution: Ultra-Flex Precision Wire
Results: Enabled 3D cutting previously impossible, expanded product line
